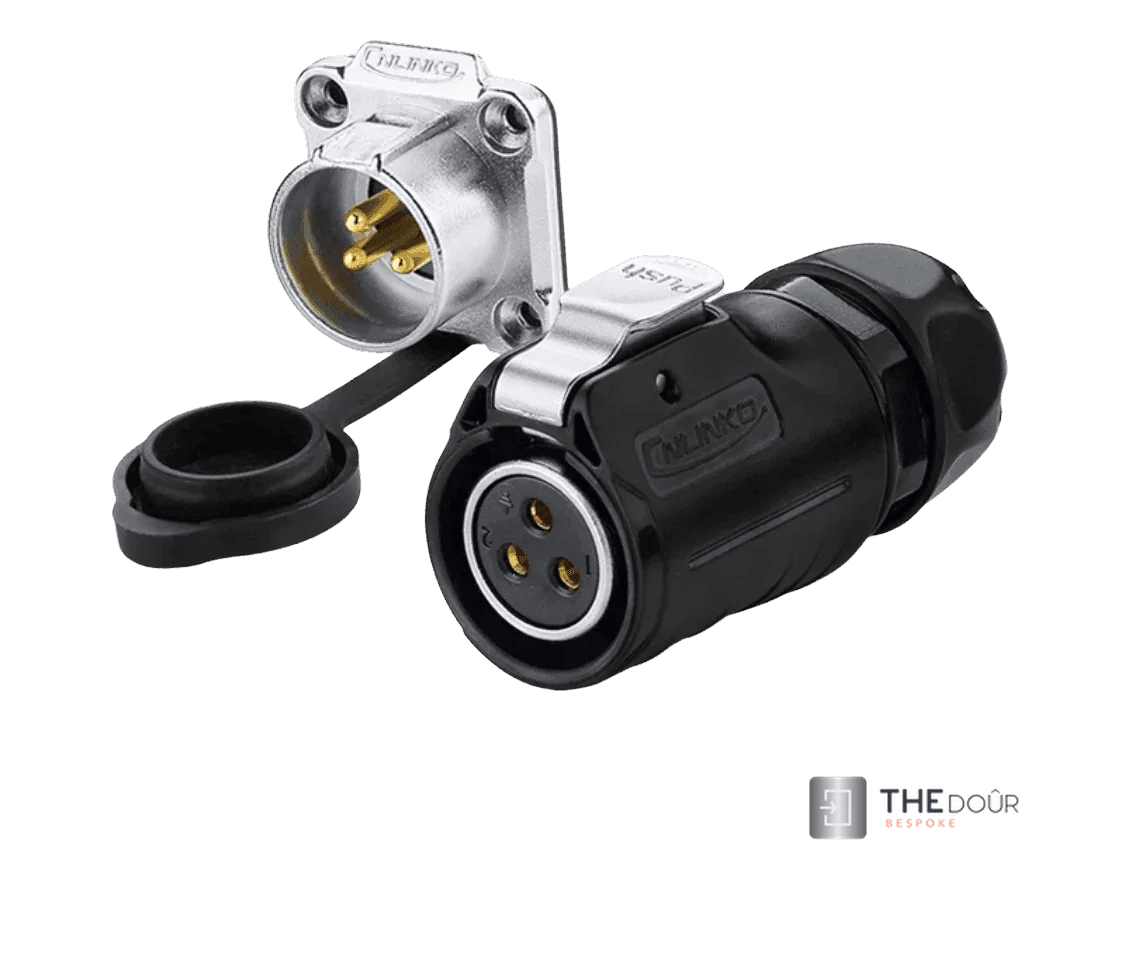

IP67 COMPACT Surface Mounted 240v Electric Hookup Black & Chrome

Vendeuse THEdoûr Bespoke
Prix ​​habituel $37.57 USD
Prix ​​de vente $37.57 USD Prix ​​habituel $42.94 USD
Vente Épuisé
Prix ​​unitaire
/par
expédition calculé à la caisse.
Texte de pré-commande

Compact Campervan / Motorhome 240v Hookup

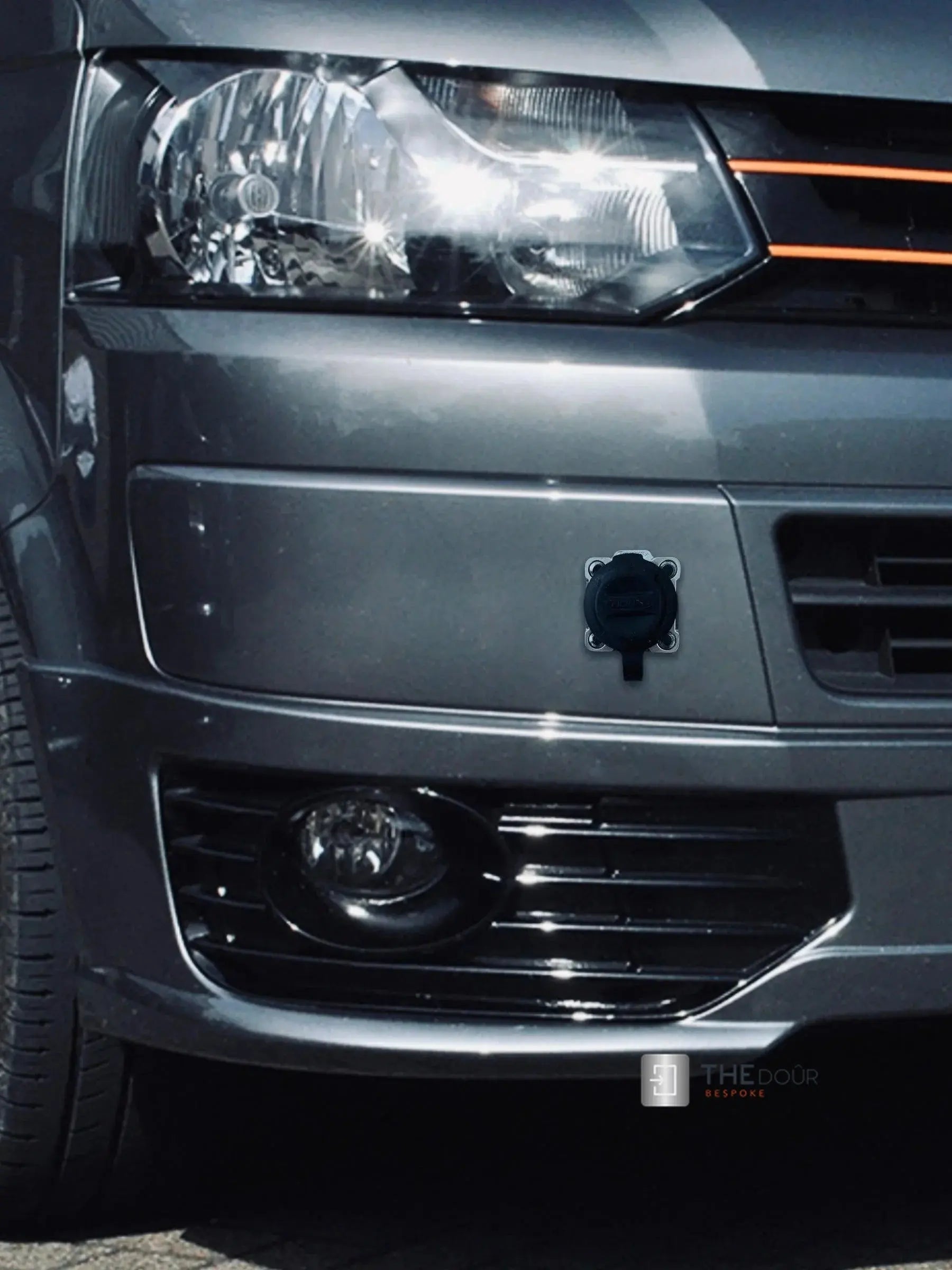

Modern conversions deserve a sleek solution to the standard hook up set ups. With our small, discreet hookup sockets you can position them at various points on your campervan conversions, making them the ideal solution to a high grade conversion. Multiple choices in colours and styles, to blend to your bodywork and preferences. If you need help with the style/colour you require please feel free to message us.

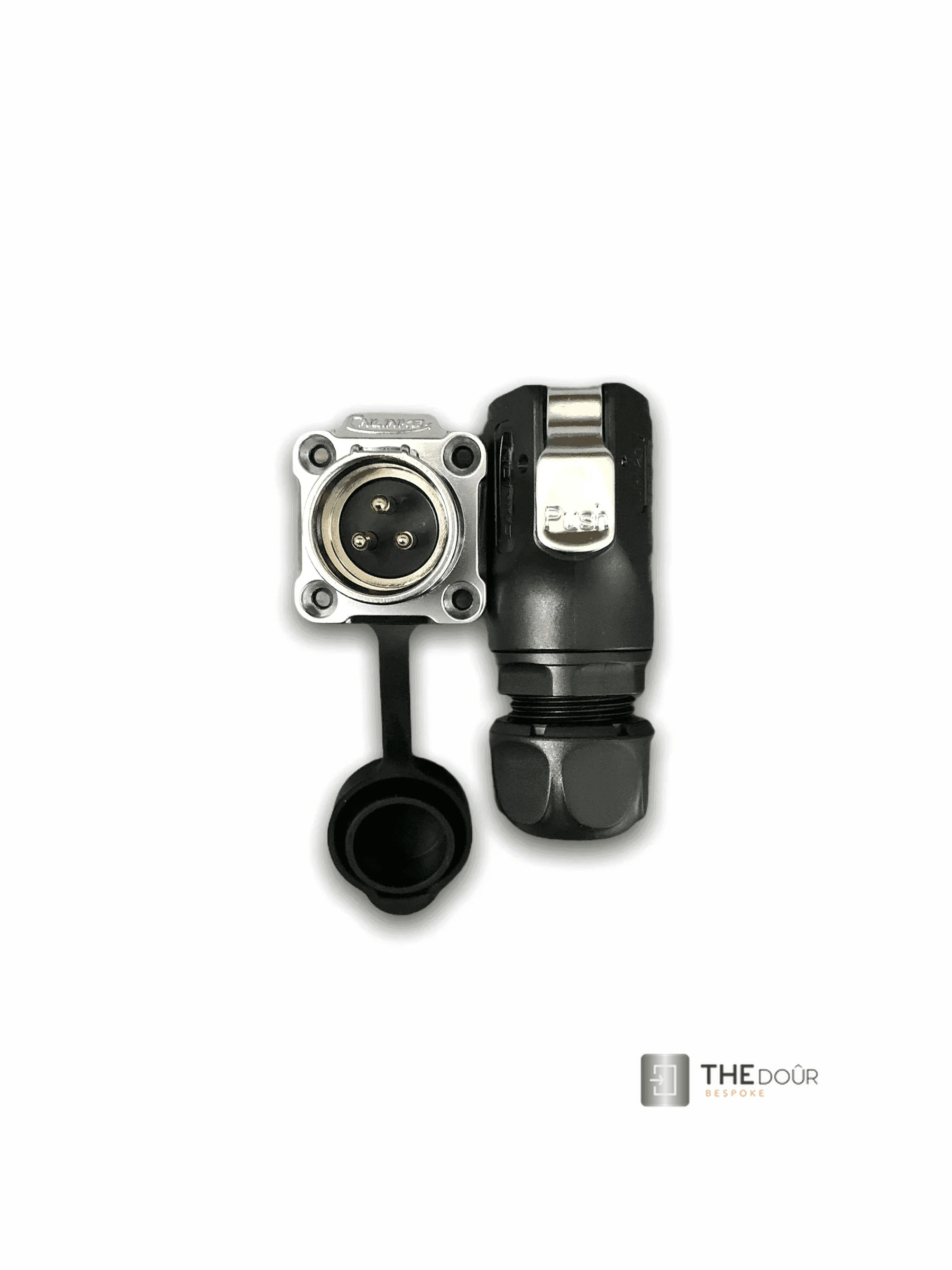

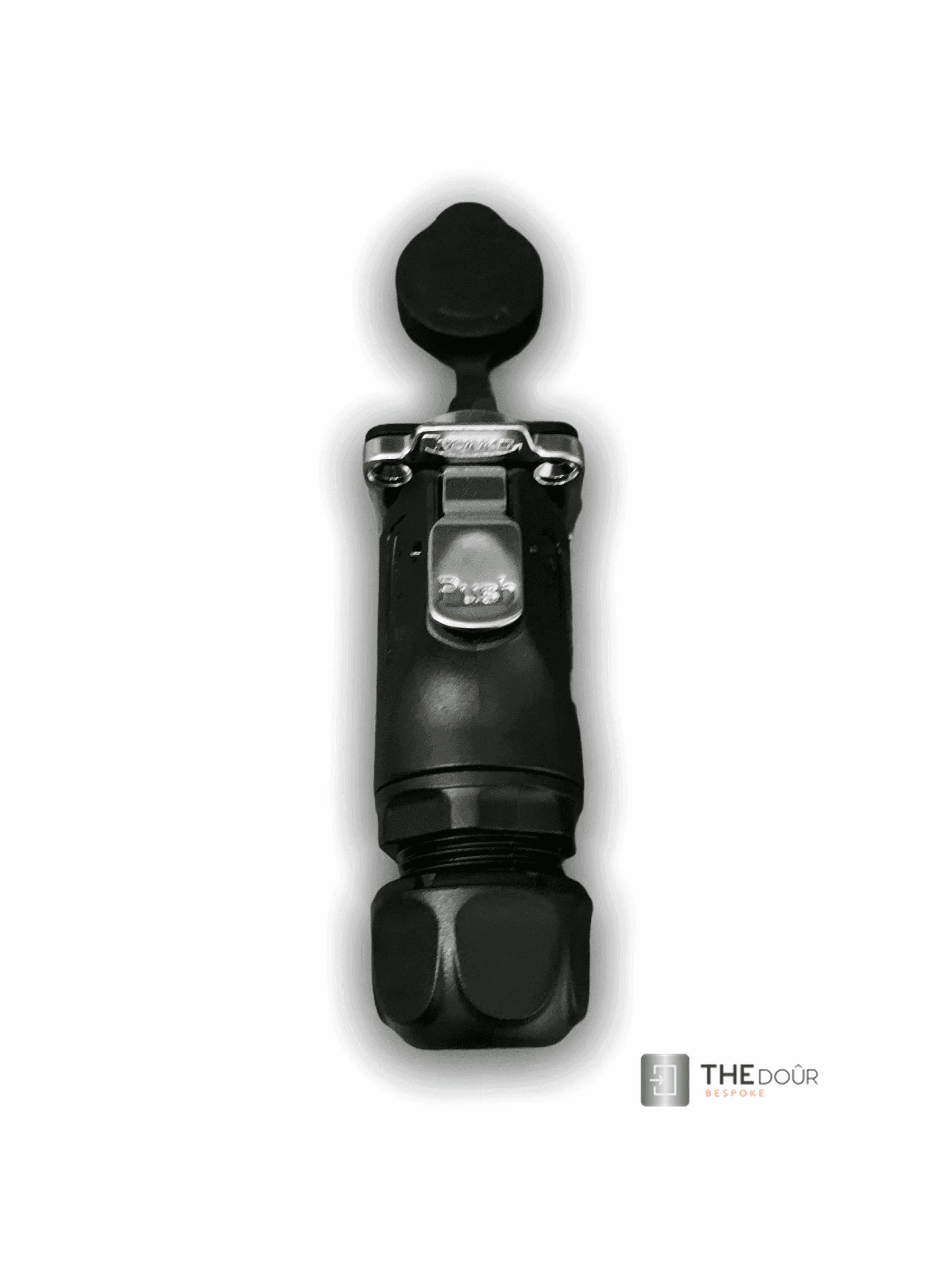

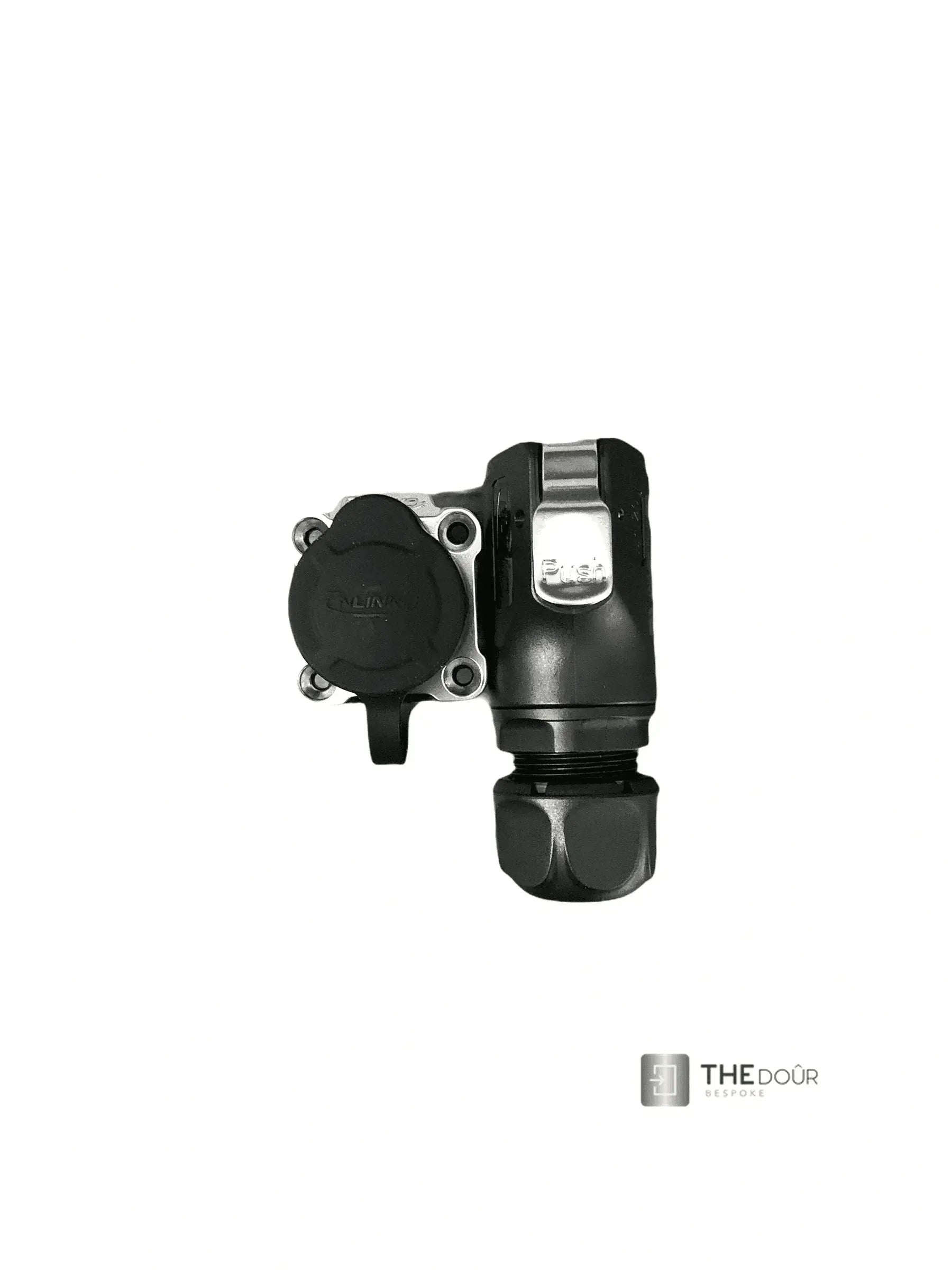

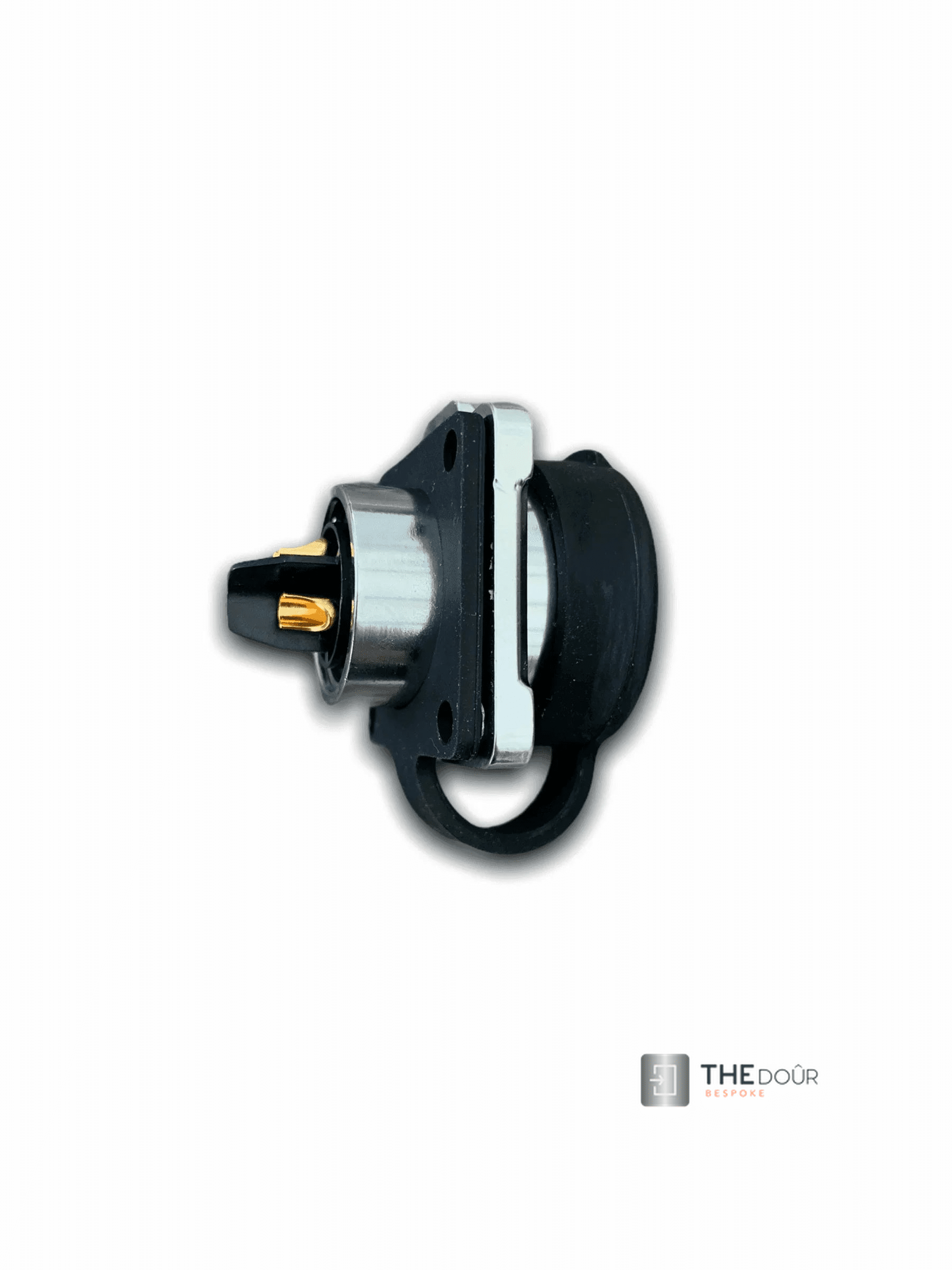

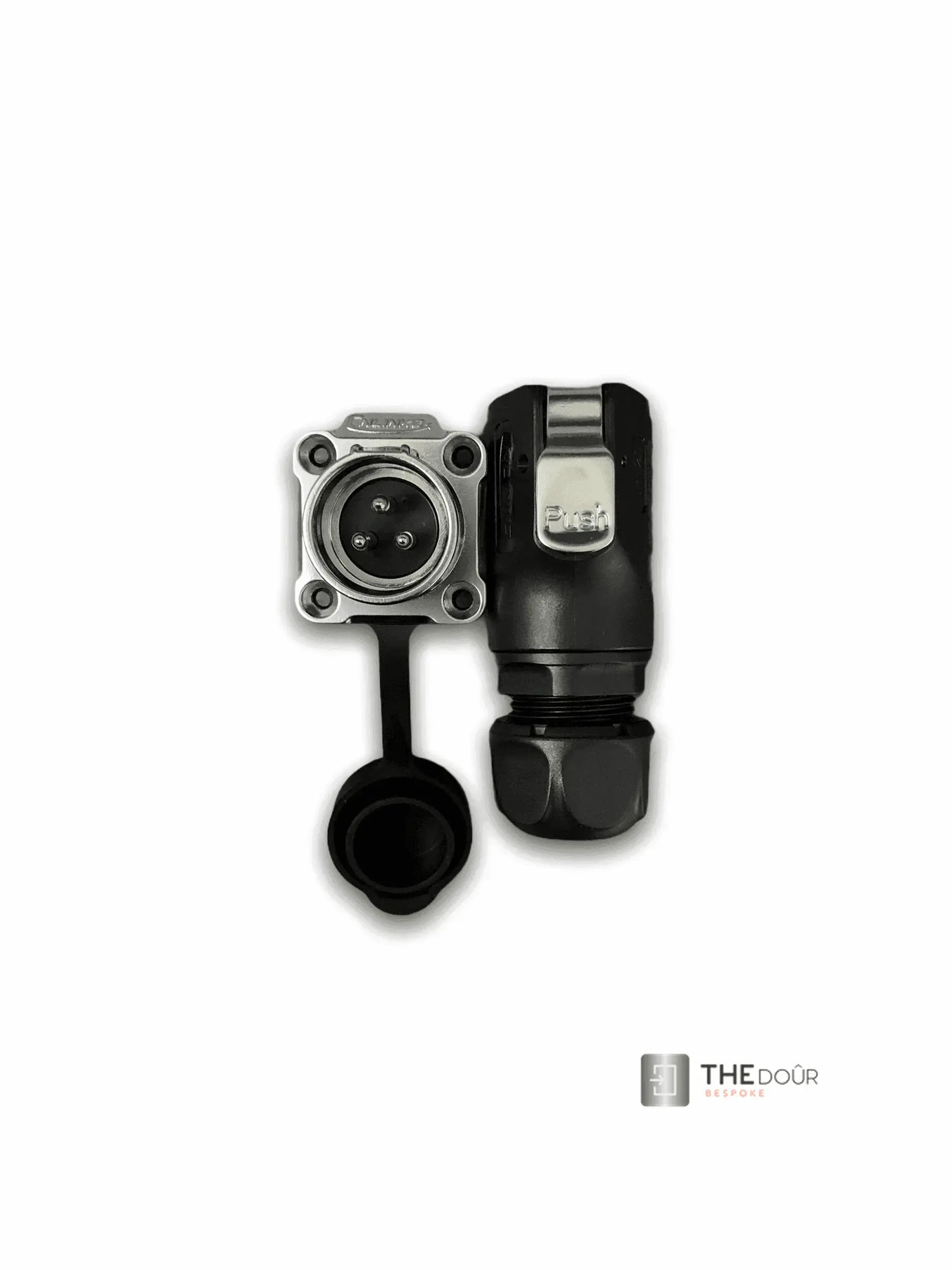

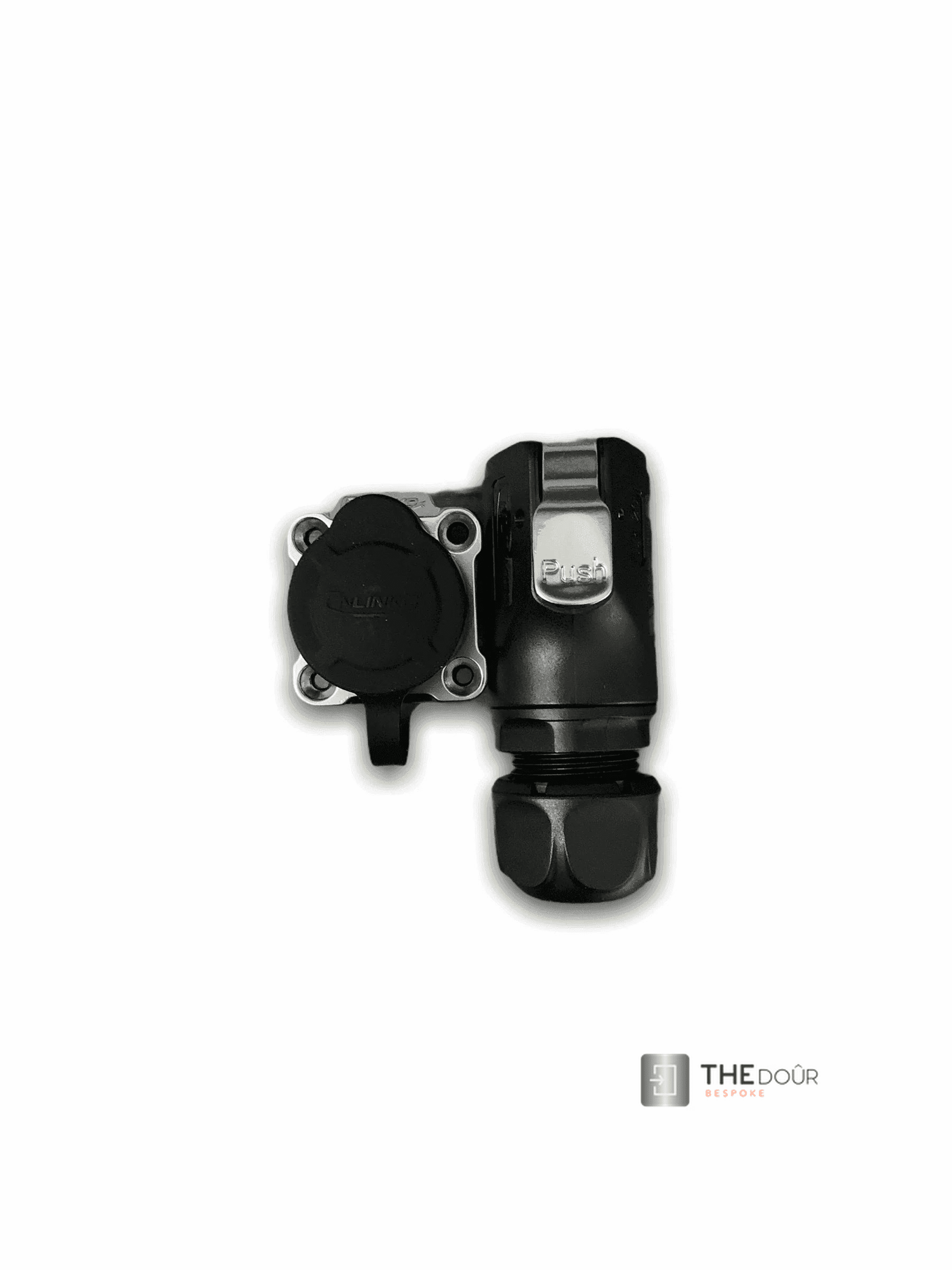

In your order you will receive a 20amp plug and matching socket, with protective waterproof cover, to protect your internal cables whilst afixed to your camper van.



Features include:



1. External protective material to effectively reduce electromagnetic and signal RF interference generated by external high current.


2. Three-point spiral locking with military standard.


3. Optional shell color to meet different environmental requirements.


5. Rated current: 20A rms.


6. The IP65/IP67 protection level is met when the product is connected.



7. UL and CE rated, made from PBT with Gold plated Brass Pins.


Feed, polarity and connection would be using UK 3 Pole twin and earth cable with a UK commando at the main hookup side (which is not supplied)



It is important that the thread between the housing and the connector head is secured using a cyanoacrylate adhesive. This is to prevent the connector from being opened unintentionally when used in electrical circuits.



Safety information:

Connectors used in electrical circuits must only be assembled, used by or under supervision of persons with the correct electrotechnical training, ensuring that the applicable standards and regulations are taken into account. You must make suitable steps and effort to ensure that the connector cannot be disconnected by  accident and ensure that it is surface sealed mounted. This safety information is put here for our customers attention and wellbeing.



Connectors with IP 65 and IP 67 are not suitable for use underwater.




Specifications



Connecting mode

Latching Lock connect

Protection level

IP67

Cable specification

2.5mm2 ~ 4mm2 /14~12AWG

Diameter range

8mm ~12mm

Contact diameter×Qty

2.7×3

Current rating(A)

20A

Operating voltage(AC.V.rms)

500V

Withstand voltage(AC.V)1min

2500V

Contact resistance

<1m

Insulation resistance

>500M

Durability

500 mating&unmating cycles

Temperature rating

-40°C~80°C

Method of connecting cable

Solder

Prevent the combustion level

UL94-V0

Material



Shell&insulated parts

High performance engineering plastics

Hardware metal

Zinc alloy(pearl hard chromium)

Contact pin

Copper alloy(gold-plated)

Spring

Stainless steel

Sealing

Silica gel

Main characteristics



Sealed against dust and fluid (IP65/IP67)



Vibration resistance,impact resistance,stretching resistance



1/4 bayonet connect; socket with cover



Application industries



Stage equipment - The smart grid



Medical equipment - Server



Solar energy equipment - Ship equipment



Electric power equipment - Vehicle equipment



Communications equipment - Heavy machiner
