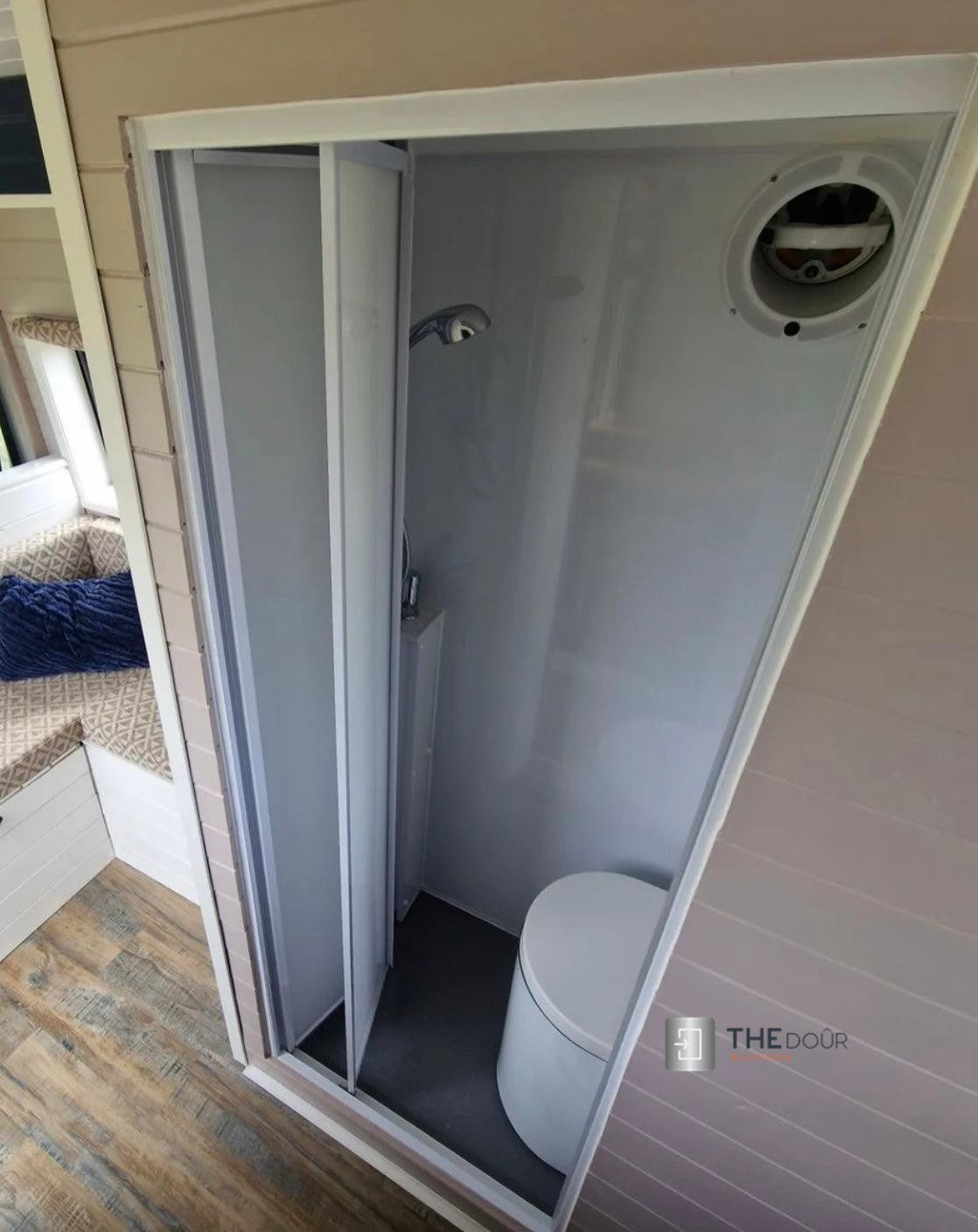

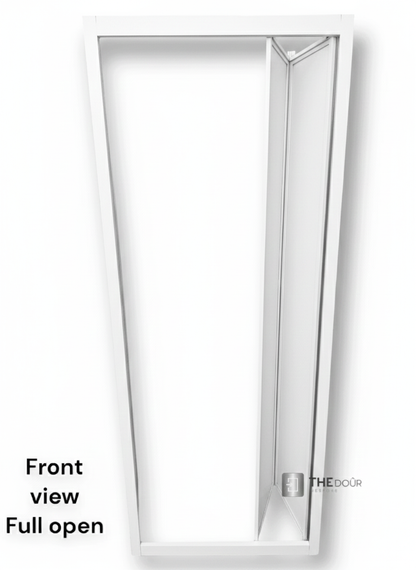

White FOLdoûr Bi Fold Accordion Aluminium Frame Frosted White Acrylic Shower Screen Door Designed for a Campervan

FOLdoûr Bi Folding Accordion Style shower door.

FOLdoûr is available in 2 suitable sizes for Campervan use

• 1800mm x 700mm
• 1700mm x 700mm

We offer 3 colour choices of Aluminium Frame

• Satin Black with Frosted Black Screen
• White with Frosted White Screen
• Chrome with Frosted White Screen

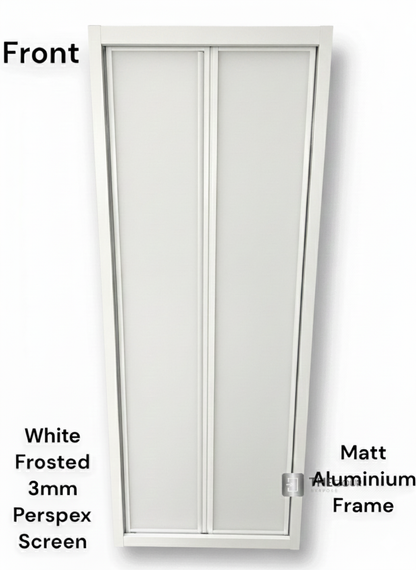

FOLdoûr has been designed for Campervan use, We have replaced the traditional heavy glass screens with a more suitable material perfect for the Campervan environment our frosted 3mm Perspex Screen reducing the weight by Half to 7-8 kgs

Perspex acrylic was chosen for its

• high shock, abrasion and flex resistance.
• excellent weather and UV resistance.
• low density / light weight compared with glass but 10 x Stronger
• frosted screen offers excellent light & privacy while showering.
• 100% recyclability.

Our Screens are frosted on the outside & reflective shine on the inside, the frosted screen gives full privacy while shower or using the WC

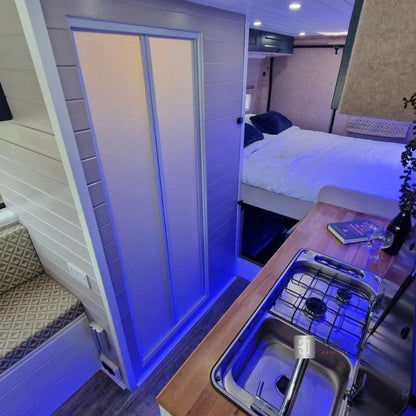

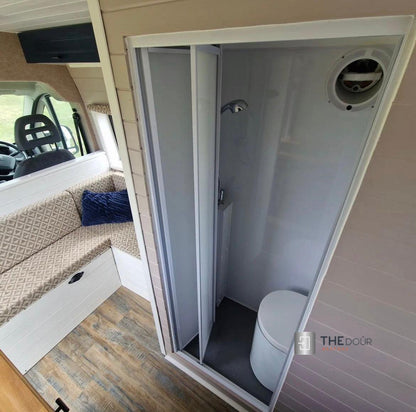

FOLdoûr is a great space saving shower door option for Luxury Campervans, Motorhomes, Racevans,  Conversions and has been designed to provide a high performance quality shower door for a high performance vehicle that will stand the test of time.

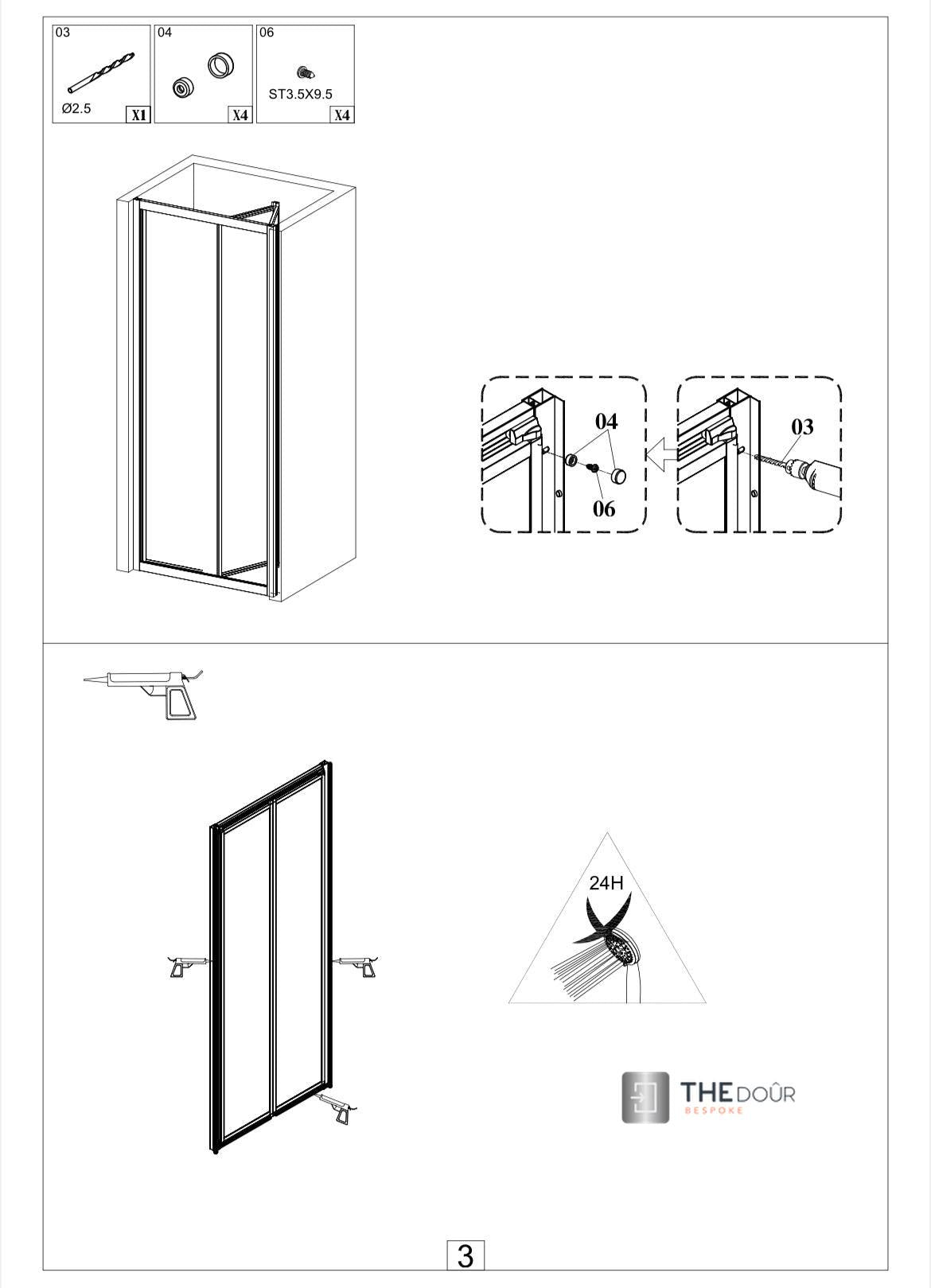

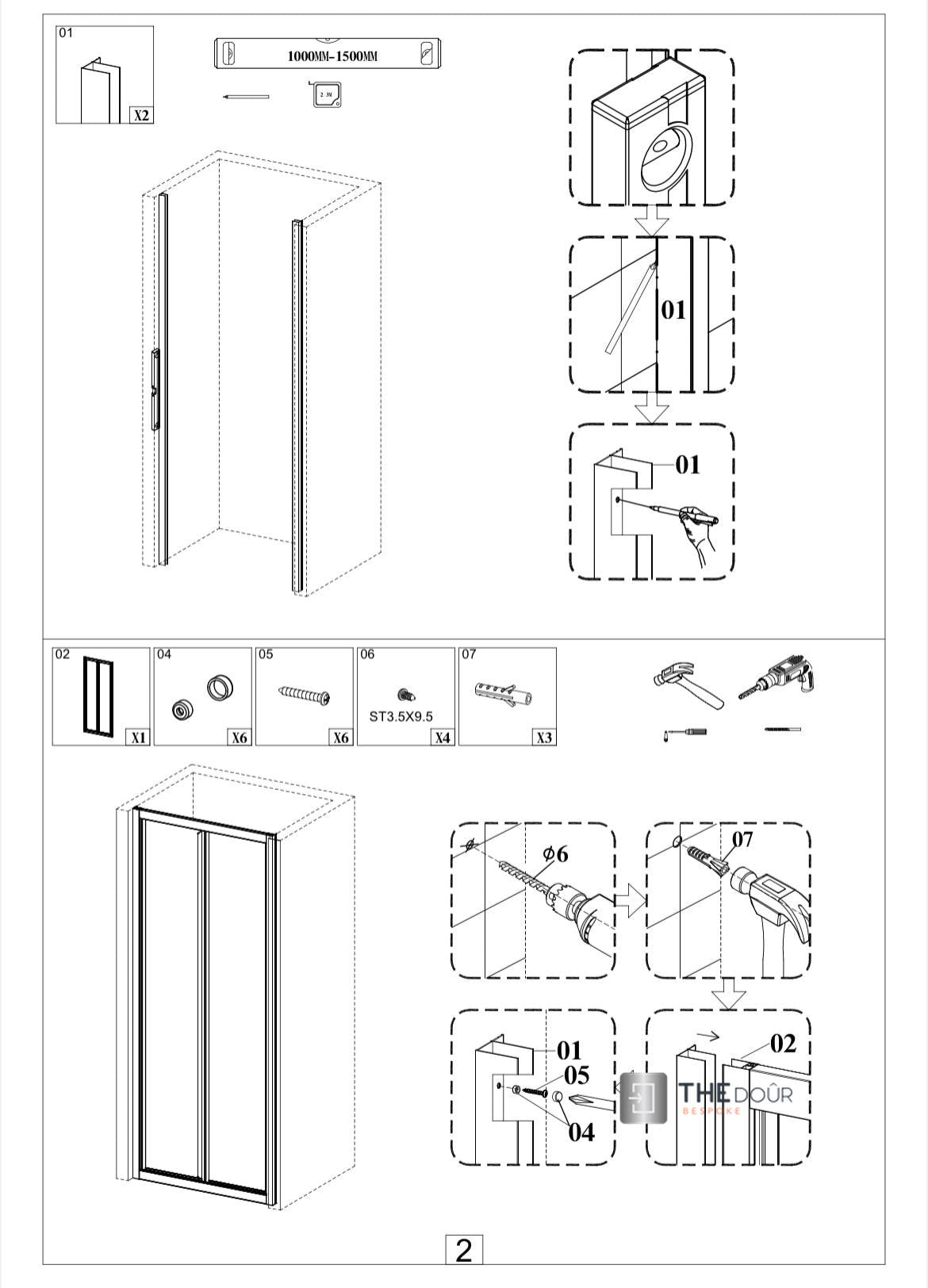

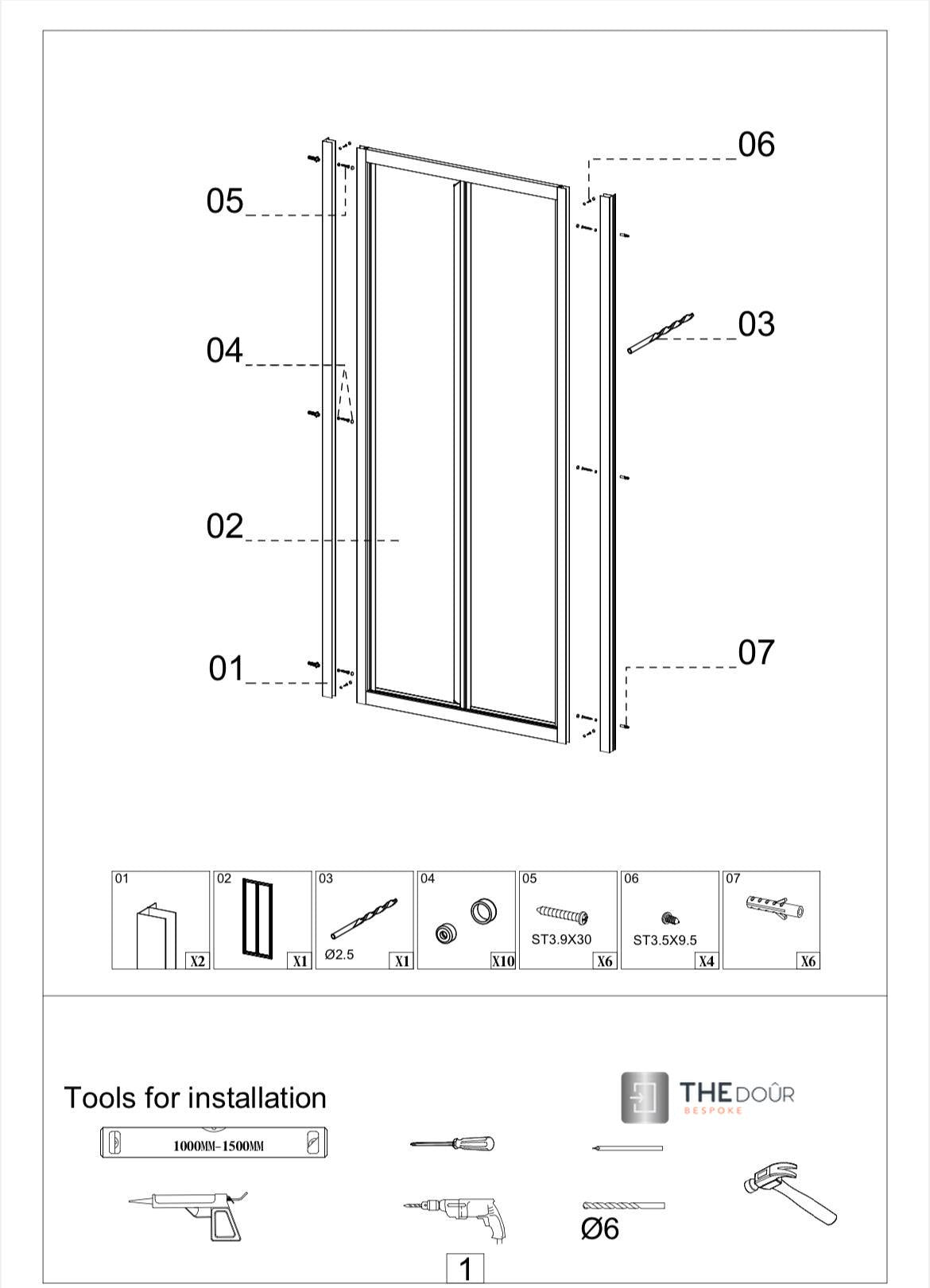

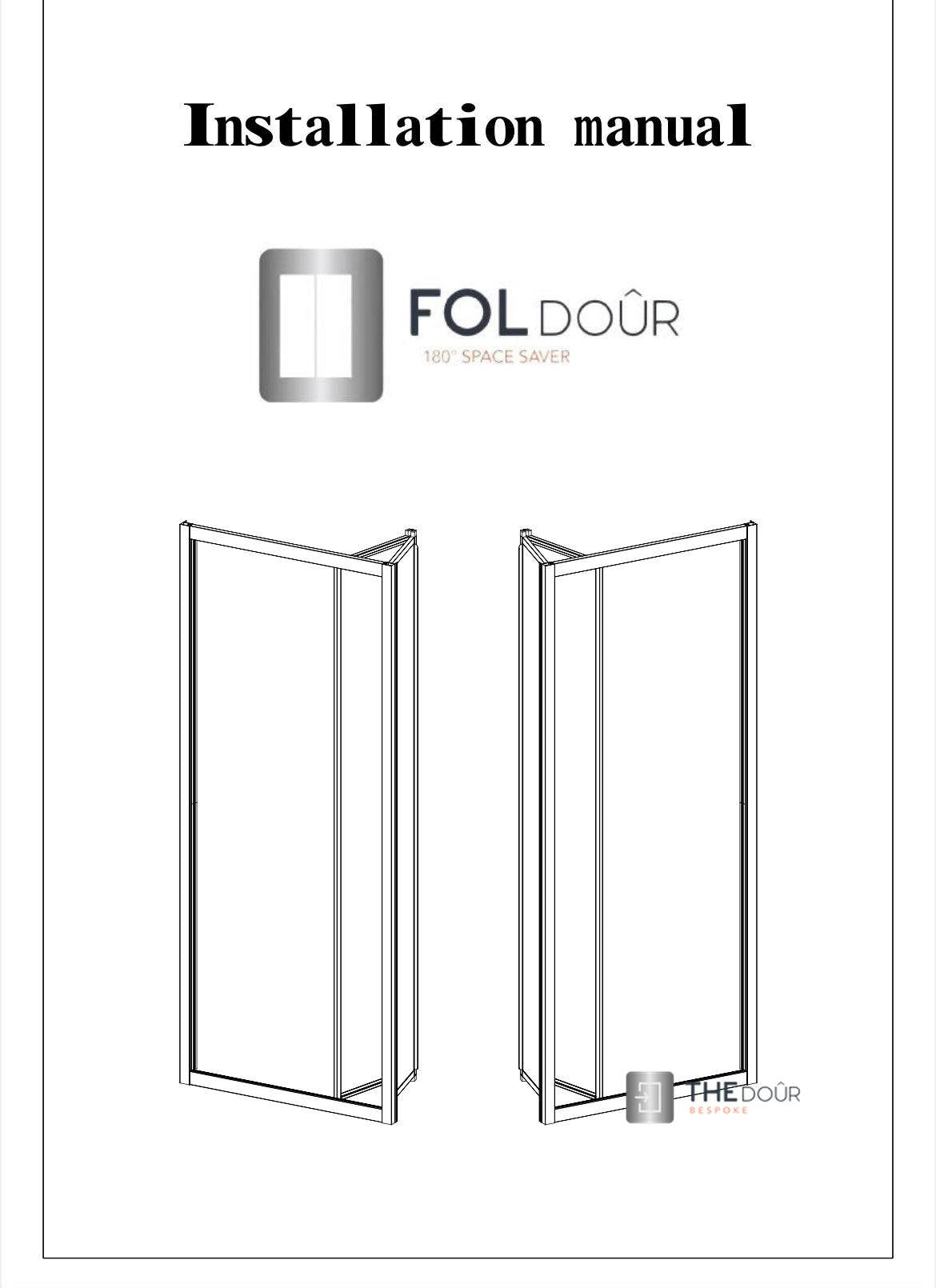

Easy to read fitting instructions or to be prepared before delivery you can download from our website www.thedour.co.uk

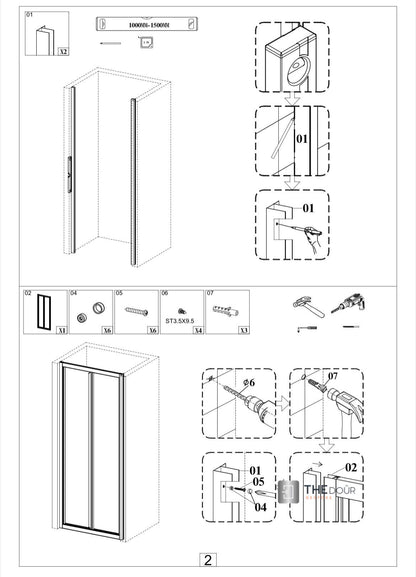

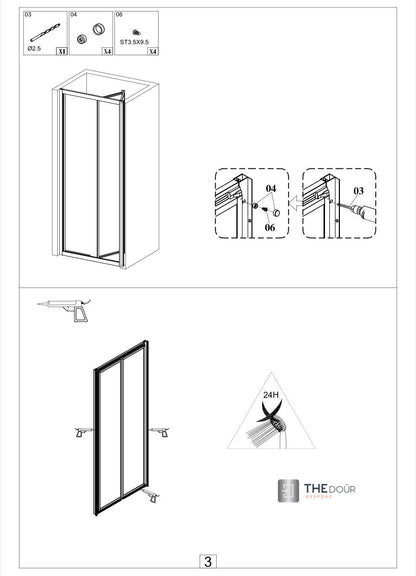

Fitting Options -

Flush Frame finish -

• Doors can fitted using both side fixing tracks to secure the door and fixed between 2 side walls width 702mm
• Door held between 15mm ply walls, Ply slotted between the doors side channels.

20mm Kick-out Frame

• Use side tracks to secure the door, 20mm frame will kick-out into walk way, remaining 20mm side track to be fixed to 15-18mm ply sides.



Specifications -

Gross box weight 10.5kg

Box Measurements -

• W 74cm / 740mm
• H 178cm / 1780mm
• D 6.5cm / 650mm

Out of box weight - 8kg

Box Measurements -

• W - 70cm / 700mm
• H - 170cm / 1700mm or H 180cm / 1800mm
• D - 2cm / 20mm
• Side track fixing - 4cm / 40mm

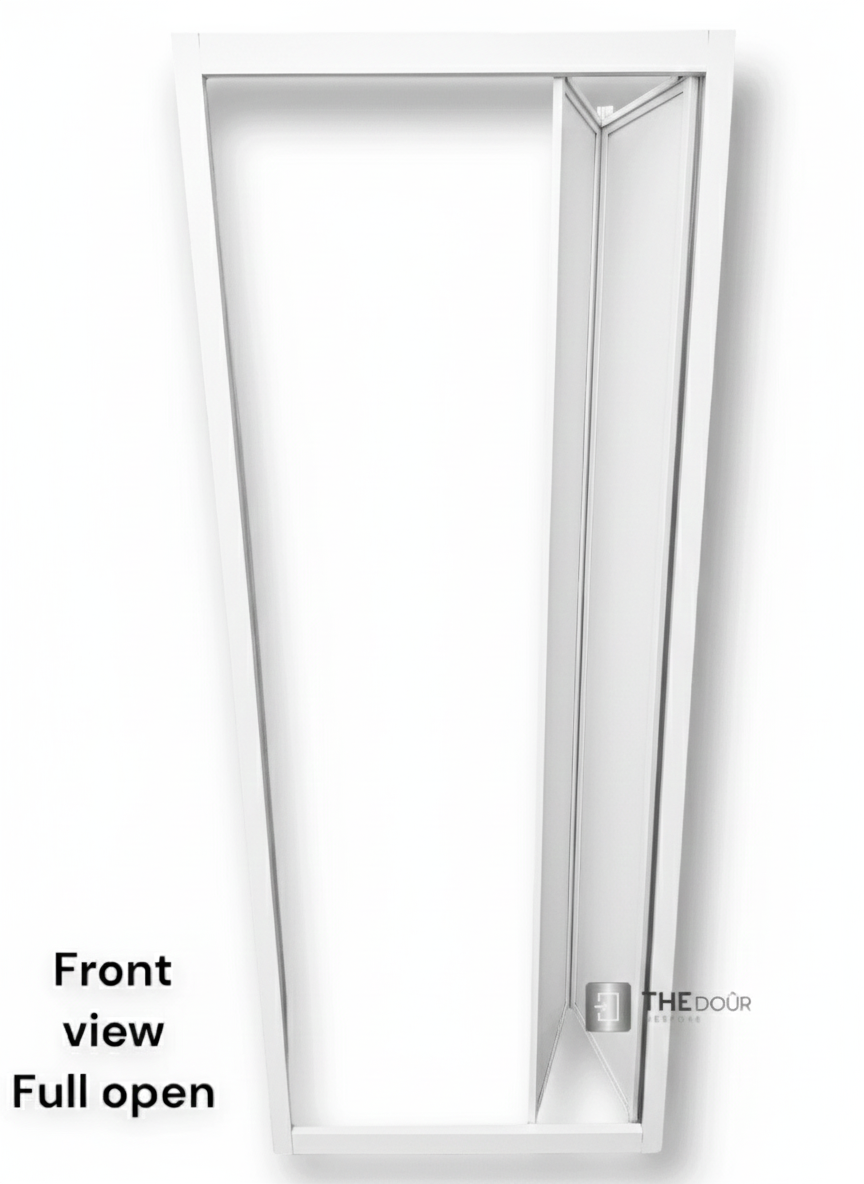

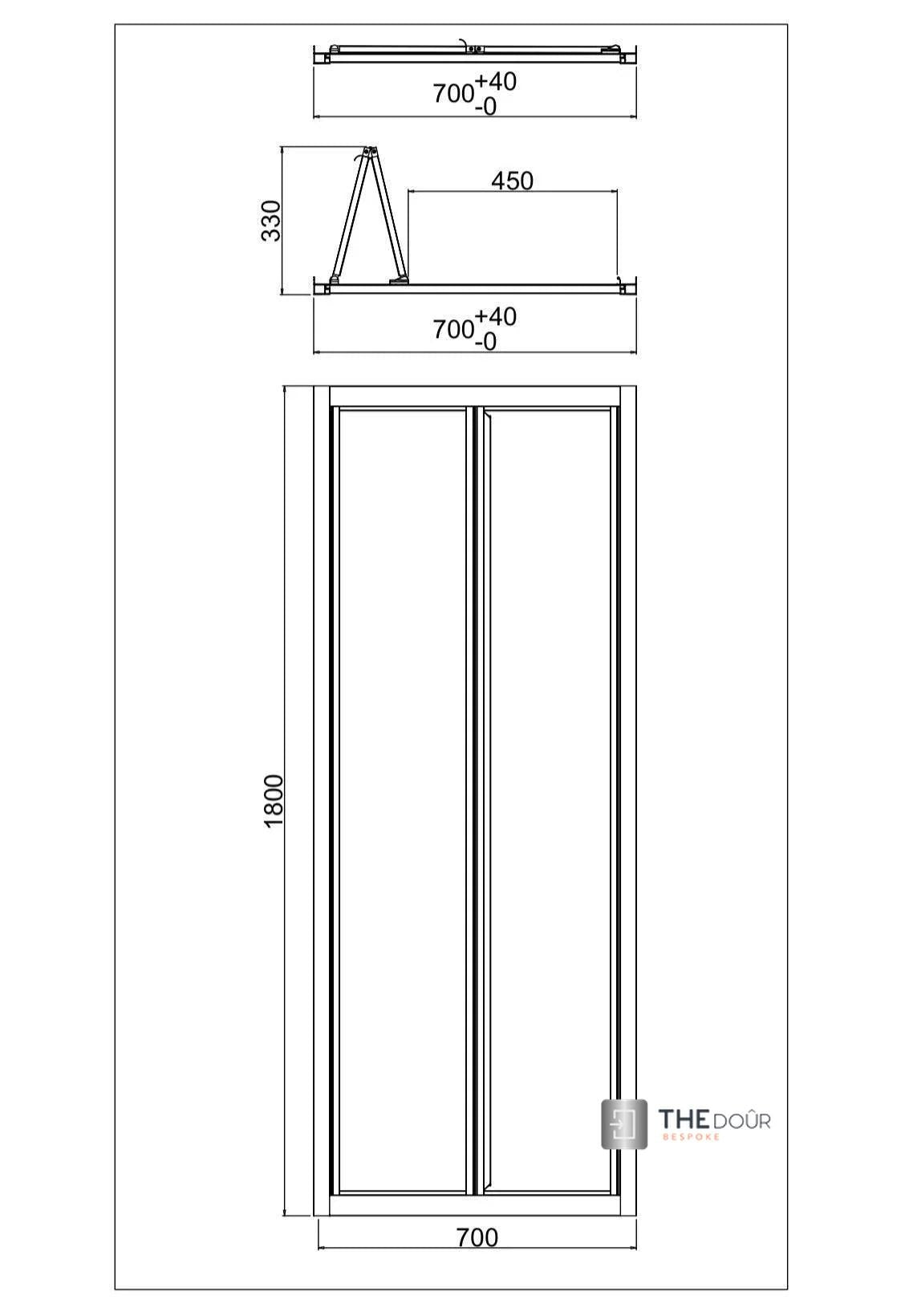

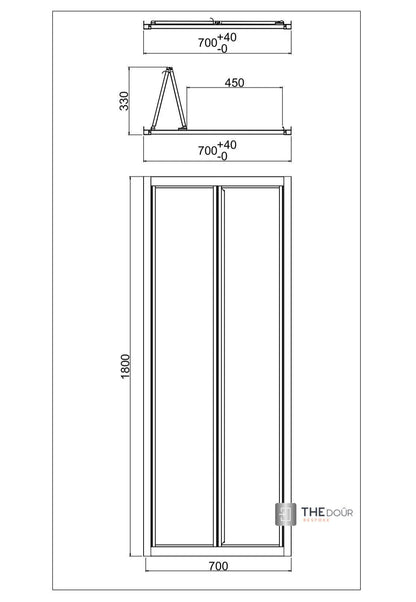

Door frame & opening -

• Total walk through 435mm
• Door sliding depth inside when open 290mm
• Door Side frame - 35mm wide
• Door Top & bottom frame 45mm wide
• Side channels on each side of door 1.8cm / 18mm x 2.2cm / 22mm depth

Kick out frame fitting -

• Frame in walk way kick out 2cm / 20mm with fixing frame Left with 2cm / 20mm
